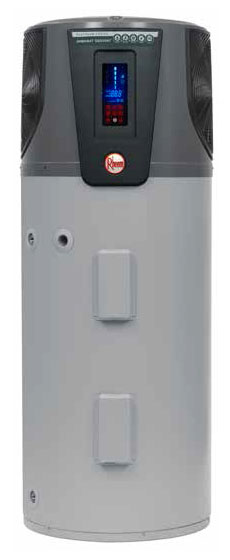

Ambiheat HDc-270 Heavy Duty Heat Pump Hot Water System
AMBIHEAT HDc-270 Heat Pump is a smart, energy efficient alternative for areas where a traditional solar water heater may not be suitable. It uses the heat from the surrounding air, to heat your water and provides a reliable, efficient and sustainable way to reduce your water heating energy consumption. A Heat Pump works day and night as it extracts heat from the surrounding air and doesn’t rely on direct sunlight to operate.
FEATURES
• Advanced wrap around microchannel heating technology for uniform and faster water heating
• Suitable for cold climates with an operating range from -5°C to +43°C
• Suitable for harsh water conditions2
• Save up to 68% on your water heating energy consumption compared to an electric water heater in Zone 33
• High recovery rate
• 2.4kW back-up element
• User-friendly touch screen LED display
• Eligible for Government Incentives
• 7 year cylinder warranty
• Suitable for 2 to 5 people
AMBIHEAT Heat Pump has been designed and tested to
withstand the harsh Australian conditions:
Enamel lined water tank: The enamel coating reduces the
risk of corrosion and water leakage.
Microchannel technology: Provide a larger contact area for
more efficient water heating.
Side fan design: Design specially developed to protect the
unit from rain.
Durable top cover: With its durable ASA top cover*, the unit
can easily withstand all weather conditions.
Smart LED controller display: A bright interactive LED
touchscreen display putting control at your fingertips.
| MODEL | UNIT | HDc-270 |
| System | 551270 | |
| Storage capacity | litres | 270 |
| Boost capacity | litres | 195 |
| Rated heat pump power input | watts | 985 |
| Element rating | kW | 2.4 |
| Coefficient of Performance (COP)* | 4.5 | |
| People per household | 2 to 5 | |
| Dimensions & specifications | ||
| Tank height (A) | mm | 1825 |
| Tank width (B) | mm | 730 |
| Tank depth (C) | mm | 760 |
| System weight – empty | kg | 136 |
| System weight – full | kg | 306 |
| Refrigerant | R134a | |
| Water connections & settings | ||
| Inlet | RP 3/4 | |
| Outlet | RP 3/4 | |
| Temp Press Relief (TPR) Valve setting | kPa | 1000 |
| Expansion Control Valve (ECV) setting | kPa | 850 |
| Maximum mains supply pressure | ||
| With expansion control valve | kPa | 680 |
| Without expansion control valve | kPa | 800 |
