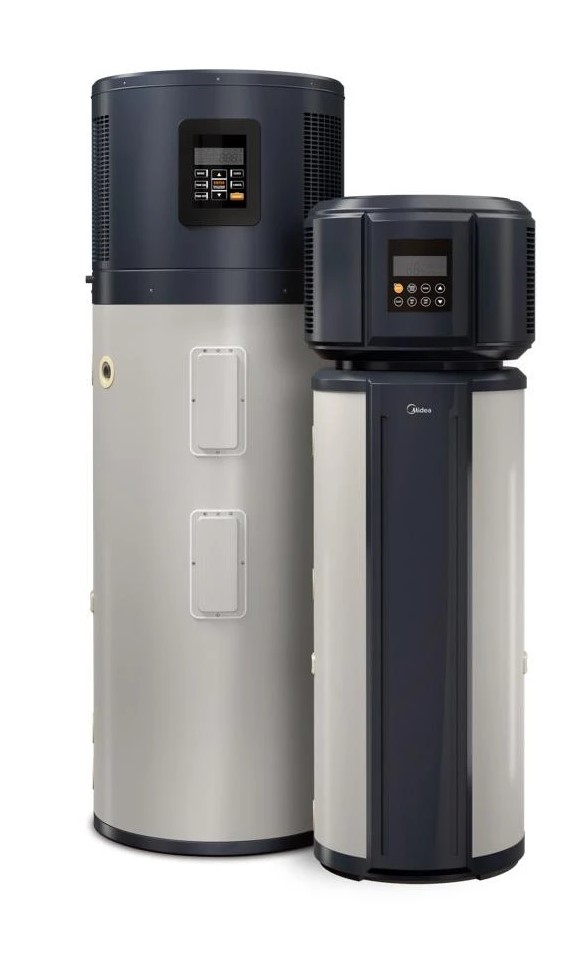

Midea Heat Pump Hot Water Systems
Harvest the free energy from our plentiful air to heat your water with the advanced Midea heat pump from Chromagen. This renewable energy water heating technology uses up to 65% less energy than a conventional water heater, whilst providing reliable hot water all day and night.
Smart Technology – Heat pumps utilise an ingenious technology to efficiently transfer thermal energy directly from the surrounding air and into the water, and so do not rely on direct sun or fossil fuels to provide an energy source.

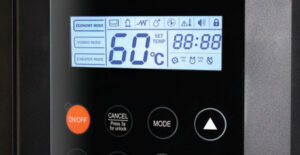

Operational modes
ECO (Heat Pump Only) mode: The standard
mode where the highest efficiency is achieved
Hybrid Mode: The Heat Pump & E-heater operate
together to ensure the set temperature is achieved
E-Heater: When the air temperature drops to
below 5°C, the heat pump will automatically select
E-heater mode for an electric hot water boost
Wide Operating Range
Operates as low as 5°C in ECO mode & between -20°C & 45°C with additional E-heat boost
Tank-Wrapped Condenser Coil
For efficient heat transfer & preventing water contamination
Low Operating Noise
Operating at a very low 48/49 dBA you will hardly know it’s there!
Auto Disinfection
Periodically heating the water beyond its set temp to prevent the growth of bacteria and legionella
Power Outage Memory
Settings are retained in the event of a power outage
Warranty Information (warranty conditions apply)
Storage cylinder
5 year warranty
3 year warranty on labour
Compressor
3 years warranty
1 years warranty on labour
Electronics, Parts & Labour
1 years warranty Electronics, Parts & Labour

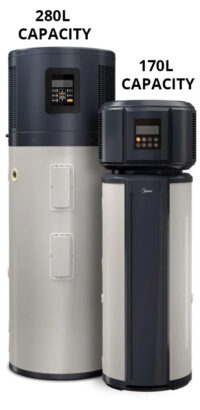

| Heat Pump Model | HP170 | HP280 |
| Nominal volume capacity (L) | 170 | 280 |
| Voltage / Hz / Phase | 220-240 / 50 / 1 | 220-240 / 50 / 1 |
| Element input power (W) | 2150 | 3000 |
| Heating capacity – Heat Pump Only (W) | 1500 | 2000 |
| Max water temperature (°C) | 65 | 60 |
| Max rated input power (W) / current (A) | 2780 / 12.1 | 4000 / 17.3 |
| Relief valve pressure (kPa) | 1000 | 1000 |
| Noise level (dBA) | 48 | 49 |
| Net Weight (kg) | 90 | 154 |
| Pipe connection diameter (mm) | DN20 | DN20 |
| Cylinder Type | Vitreous Enamel | Vitreous Enamel |
| Outdoor resistance class | IP24 | IP24 |
| Operating Mode Function | Manual | Manual |
| igerant type/quantity | R134a / 0.8kg | R134a / 1.6kg |
