Reduce your energy expenses by as much as 50% telephone Adelaide Hot Water today!
Bosch Hot Water
Bosch hot water systems are among the most economical hot water appliances on the market, boasting high energy efficiency ratings. Bosch hot water systems provide considerable savings on running costs and help preserve the environment, due to their high energy efficiency.
Bosch Hot Water Systems
Bosch Gas Hot Water Systems
Bosch Optiflow Bluetooth
Bosch Optiflow Professional
Bosch Optiflow Internal
Bosch Highflow Hot Water Systems
Bosch Highflow Hot Water System 17e
Bosch Highflow Hot Water System 21e
Bosch Highflow Hot Water System 26e
Bosch Hydropower Hot Water Systems
Bosch Internal Compact Hot Water Systems
Bosch Internal Compact – Ci10 Hot Water Systems

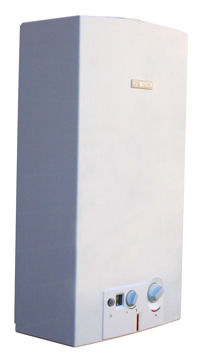

Bosch Internal Compact – Ci13 Hot Water Systems
Bosch Internal Compact Ci16 Hot Water Systems
Bosch Pilot Ignition Hot Water Systems
Bosch Condensing Gas Hot Water Range

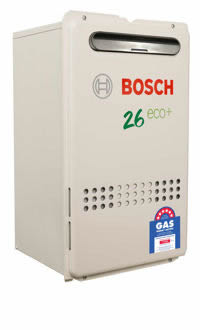

Bosch 26eco+ Hot Water Systems

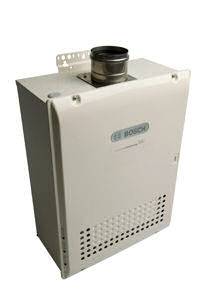

Bosch 32C Hot Water Systems
Bosch Commercial Hot Water Systems
Bosch Professional Hot Water Systems
Bosch Commercial: Bosch 32 and 32Q Hot Water Systems
Bosch Solar Hot Water Systems
Bosch Hot Water Systems Accessories

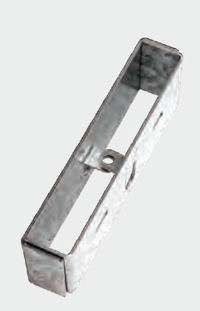

Bosch Security Bracket

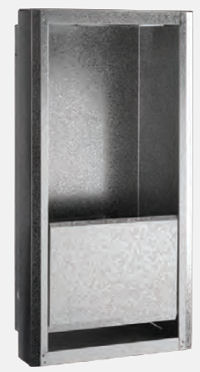

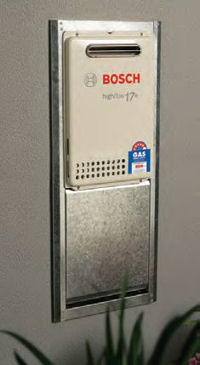

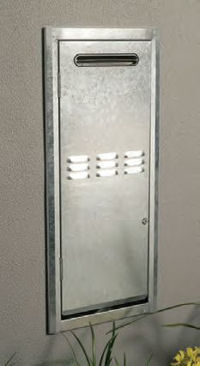

Recess Boxes

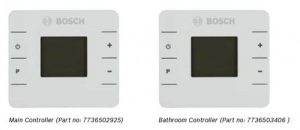

System Controllers
Premium Controllers
Standard Controllers
Exogel Valve
Bosch Gas Hot Water Systems

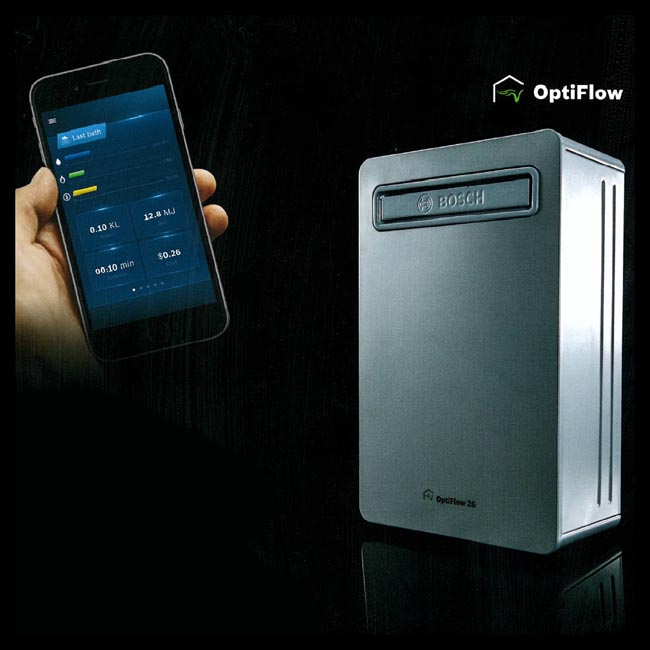

Bosch Optiflow Bluetooth
- OptiFlow combustion management system
- Bluetooth enabled appliance (up to 10m range)
- Compatible with Water & ProWater Apps
- 6 star efficiency
- Compact, lightweight
- Solar compatible water heater
- Electronically controlled modulation
- Up to 3 controllers can be installed in addition to the Bluetooth controller
- 50°C compliant models available
Description
Bosch has redefined hot water systems with the Bosch OptiFlow, the first water heater with Bluetooth connectivity on the Australian market.
Models are available in 16, 20 and 26 litre per minute flow rates.
Bluetooth connectivity offers several benefits. A free app for users allows them to track usage statistics, as well as serving as an additional thermostat, while a free app for plumbers allows them to remotely adjust settings and run diagnostics, making installation more time- and cost-effective. In addition to its Bluetooth connectivity, the OptiFlow also utilises the patented Bosch OptiFlow algorithm, which continuously adapts the system’s gas-air ratio throughout its lifetime, ensuring optimum performance and effectiveness. This water heater also utilises Bosch’s patented “Easy Minimum” technology for maximum comfort, and its elegant design makes it a true architectural feature.

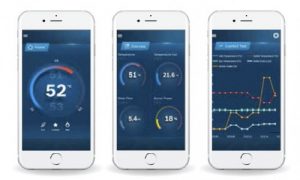

Bosch Water App for the User
– Temperature control
– Running cost information
– Energy usage information
– Water consumption information
The Bosch OptiFlow with Bluetooth is gas-powered, 6 star continuous flow hot water system which comes in 16L, 20L and 26L varieties. Bosch is bringing hot water into the Internet of Things with the Bosch Optiflow with Bluetooth
Bosch’s OptiFlow combustion management system utilizes a patented algorithm to modulate the appliance gas valve and fan speed to ensure optimum combustion. The gas to air ratio is measured 4 times per second, and if necessary adjusted. This process is ongoing over the lifetime of the appliance, allowing it to intelligently and continuously adapt to changing environmental conditions, ensuring optimum efficiency in all conditions over the lifetime of the appliance.
A new patented Bosch technology known as “Easy Minimum” allows the OptiFlow hot water system to operate at very low minimum power output, while maintaining a stable output temperature for more comfortable showers. This technology is beneficial in situations where the incoming water temperature is high and only a small temperate rise is needed. In this situation the appliance burner modulates in conjunction with an active by-pass valve. This feature extends the operating range of continuous flow water heater technology.
Features
OptiFlow combustion management system
Bluetooth enabled appliance
Compatible with OptiFlow App
6 star efficiency
Compact, lightweight
Solar compatible water heater
Electronically controlled modulation
Up to 3 controllers can be installed in addition to the Bluetooth controller
50°C compliant models available
3 year parts and labour warranty
12 year heat exchanger warranty (part only)

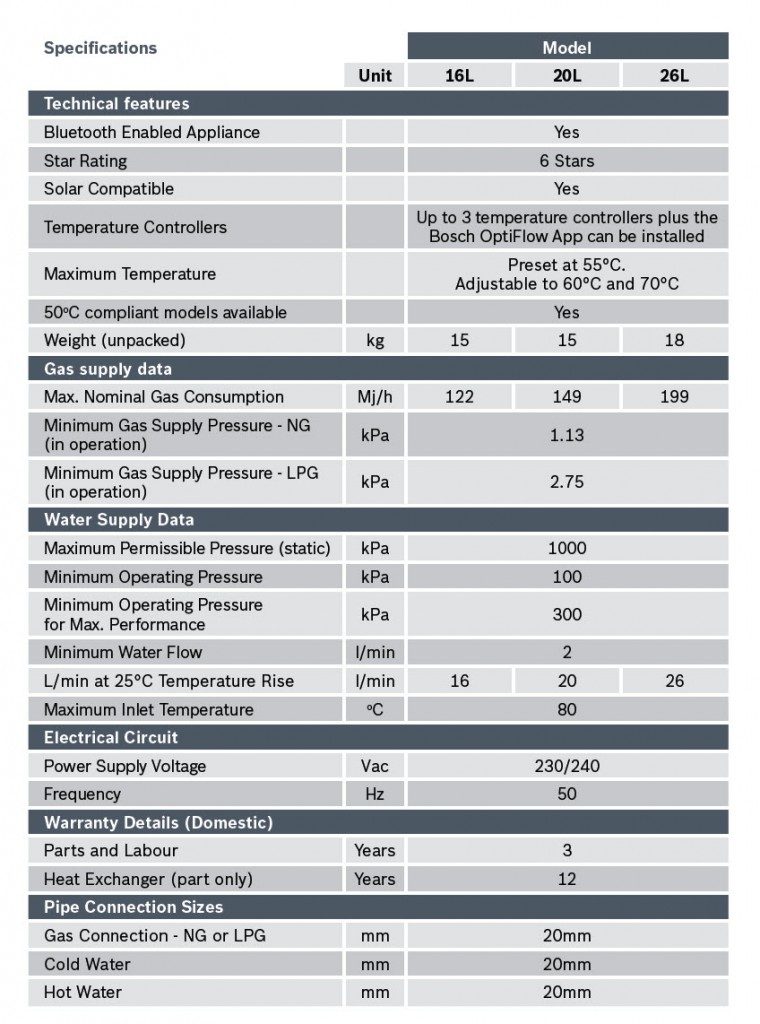

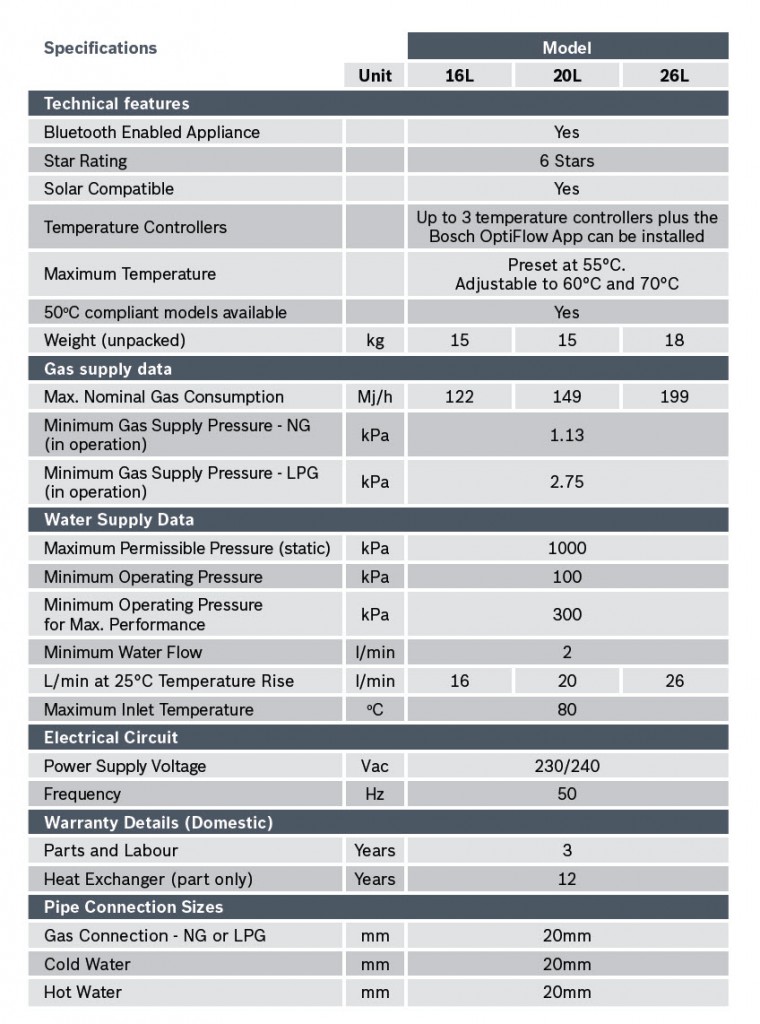

Specificatons

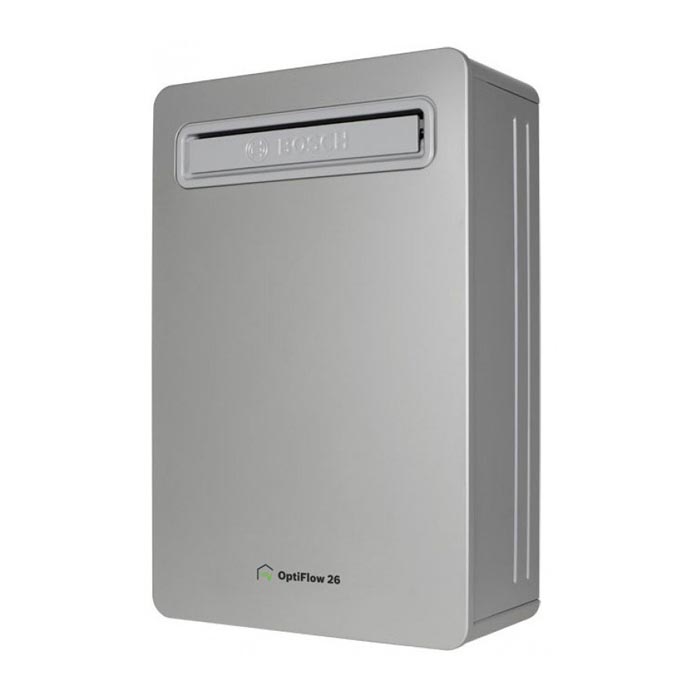

Bosch Optiflow Professional
- OptiFlow combustion management system
- 6 star efficiency
- Compact, lightweight water heater
- Solar compatible appliance
- Up to 4 optional controllers
- Electronically controlled modulation
- 3 year parts and labour warranty
- 12 year heat exchanger warranty (part only)
- 50°C compliant models available
Description
The Bosch OptiFlow Professional is a gas-powered, 6 star energy rated continuous flow hot water system which comes in 16L, 20L and 26L varieties. The Professional model is the non-bluetooth enabled version.
Bosch’s OptiFlow combustion management system utilizes a patented algorithm to modulate the appliance gas valve and fan speed to ensure optimum combustion. The gas to air ratio is measured 4 times per second, and if necessary adjusted. This process is ongoing over the lifetime of the appliance, allowing it to intelligently and continuously adapt to changing environmental conditions, ensuring optimum efficiency in all conditions over the lifetime of the appliance.
A new patented Bosch technology known as “Easy Minimum” allows the OptiFlow hot water system to operate at very low minimum power output, while maintaining a stable output temperature for more comfortable showers. This technology is beneficial in situations where the incoming water temperature is high and only a small temperate rise is needed. In this situation the appliance burner modulates in conjunction with an active by-pass valve. This feature extends the operating range of continuous flow water heater technology.
Also available as the Optiflow Professional Internal, a room selaed appliance for indoor installation.
Features
OptiFlow combustion management system
6 star efficiency
Compact, lightweight
Solar compatible water heater
Electronically controlled modulation
Up to 4 optional controllers
50°C compliant models available
3 year parts and labour warranty
12 year heat exchanger warranty (part only)

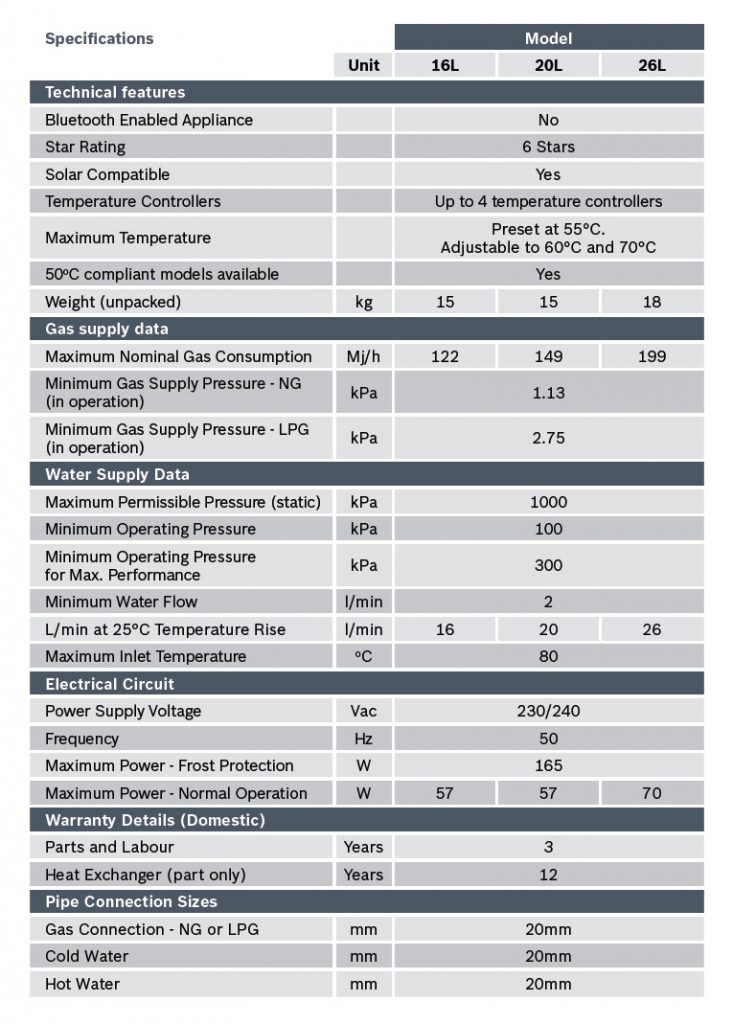

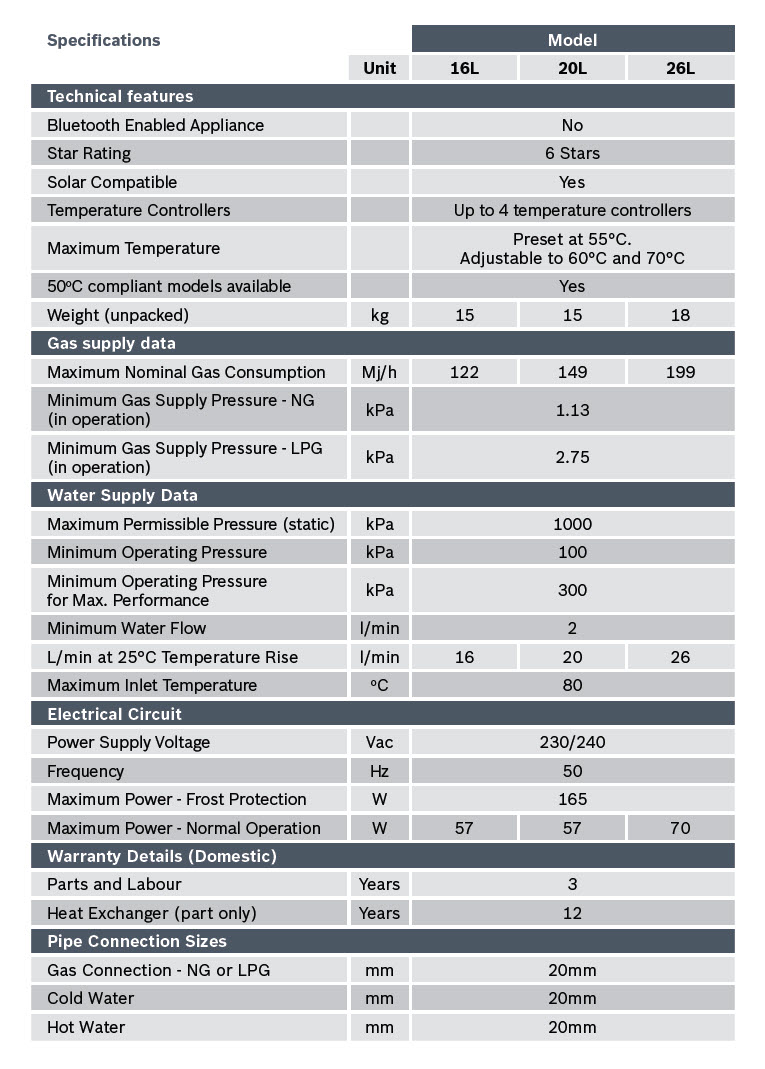

Specificatons

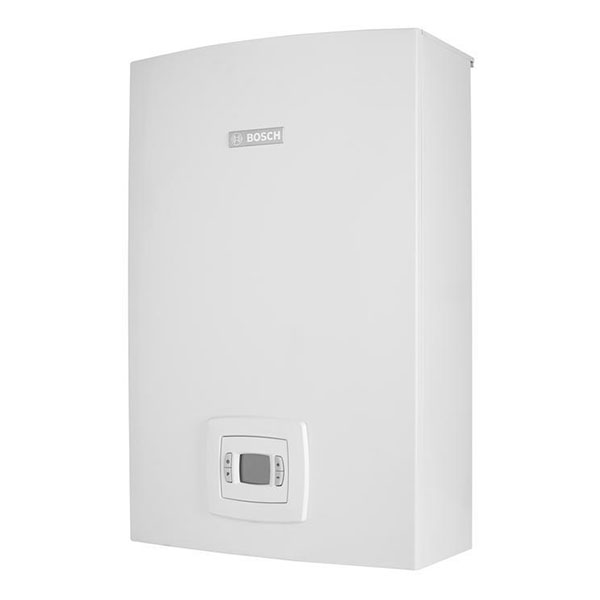

Bosch Optiflow Internal
- OptiFlow combustion management system
- Room sealed appliance
- 6 star efficiency
- Compact, lightweight
- Solar compatible water heater
- Electronically controlled modulation
- Up to 4 optional controllers
- 50°C compliant models available
- 3 year parts and labour warranty
- 12 year heat exchanger warranty
Description
The Bosch OptiFlow Professional Internal is a room-sealed
continuous flow water heater, with fluing flexibility that
allows installation close to the point of use.
Available 12, 16 & 20 litre per minute models.
Room sealed appliance
Inbuilt temperature controller
Electronically controlled modulation
50°C locked models available
6 Star efficiency
Features
OptiFlow combustion management system
Bluetooth enabled appliance
Compatible with OptiFlow App
6 star efficiency
Compact, lightweight
Solar compatible water heater
Electronically controlled modulation
Up to 3 controllers can be installed in addition to the Bluetooth controller
50°C compliant models available
3 year parts and labour warranty
12 year heat exchanger warranty (part only)
Specificatons
- 5.5+ Star Energy Rating
- Bosch Continuous Flow Technology
- Compact Design
- External Installation
- Up to 4 Optional Temperature Controllers
- Suitable for 1-3 Bathroom Homes
- Antifrost
- 50°C Limited Models Available
- The 21e (YS2170RAH) and 26e (YS2670RAH) are Solar Compatible
- 3 Year Parts and Labour Warranty
- 10 Year Heat Exchanger Warranty
The all new Bosch Highflow hot water systems represents the technological pinnacle of water heating. The new Bosch electronic series lets you enjoy uncompromised quality, higher capacities with even more temperature controllers. Bosch Electronic Highflow units are compact and space-saving. Bosch Highflow hot water systems are designed for maximum energy efficiency and environmental protection. They provide a minmum of 5.5+ star energy performance rating which is great for maximum energy efficiency. With a Bosch Highflow you are ensured of continuous hot water while saving money and caring for the environment. Antifrost is also a standard feature across the Bosch Highflow range. The range of Bosch Highflow available includes the 17, 21 and now the even higher 26 litres per minute flow rates. This ensures that with a Bosch Highflow hot water system you never run out of hot water! For complete hot water temperature control you can now install up to four optional hot water temperature controllers. This allows precise control of hot water temperature throughout the kitchen, bathroom, laundry and en suite.
- Suitable for 1-2 Bathrooms
- Bosch Continuous Flow Technology
- 5.66 Star Energy Rating
- Compact Design
- Natural Gas or LP
- Antifrost
- External Installation
- Up to 4 Temperature Controllers which includes:
- Unique Bath Filling Function – alerts you when the desired volume and temperature is reached
- Digital Display Controllers – including time of day and water temperature
- Priority Switch – will override main controller if safety is threatened
- Call Button on Controllers – for elderly or disabled requiring assistance in the bathroom
- Constant Water Temperature – computer controlled
- Fault Diagnostic Display – in-built computer control checks functions and records any problems
- 3 Year Parts and Labour Warranty
- 10 Year Heat Exchanger Warranty
Bosch 17e highflow hot water system is a continuous flow hot water system that heats the water only as required. The Bosch 17e hot water system has a 5.66 star energy rating and offers an efficient alternative to traditional gas and electric hot water storage units. Save money on your energy bills and care for the environment at the same time.
For more information about Bosch Highflow Hot Water System 17e Specification click on the link.
- Suitable for 1-2 Bathrooms
- Continuous Flow Technology
- 5.56 Star Energy Rating
- The 21e (YS2170RAH) is Solar Compatible
- The 21e has a Compact Design
- Natural Gas or LP
- Antifrost
- External Installation
- Up to 4 Temperature Controllers which includes:
- Unique Bath Filling Function – alerts you when the desired volume and temperature is reached
- Digital Display Controllers – including time of day and water temperature
- Priority Switch – will override main controller if safety is threatened
- Call Button on Controllers – for elderly or disabled requiring assistance in the bathroom
- Constant Water Temperature – computer controlled
- Fault Diagnostic Display – in-built computer control checks functions and records any problems
- 3 Year Parts and Labour Warranty
- 10 Year Heat Exchanger Warranty
The Bosch 21e Highflow model is a continuous flow system that only heats water as required. It has a 5.56 star energy performance and it is also an efficient alternative to traditional electric and gas hot water storage systems. It has maximum efficiency and you are ensured of continuous hot water supply while saving money and caring for the environment.
For more information about Bosch Highflow Hot Water System 21e Specifications click on the link.

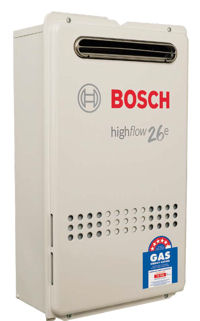

- Suitable for 2 to 3 Bathrooms
- Continuous Flow Technology
- 5.53 Star Energy Rating
- Compact Design
- 26 Litre Per Minute Flow Rate
- The 26e (YS2670RAH) is Solar Compatible
- Natural Gas or LP
- Antifrost
- 50°C Limited (Part Number Req. YS2670RA5)
- External Installation Only
- Up to 4 Temperature Controllers which includes:
- Unique Bath Filling Function – alerts you when the desired volume and temperature is reached
- Digital Display Controllers – including time of day and water temperature
- Priority Switch – will override main controller if safety is threatened
- Call Button on Controllers – for elderly or disabled requiring assistance in the bathroom
- Constant Water Temperature – computer controlled
- Fault Diagnostic Display – in-built computer control checks functions and records any problems
- Bosch 3 Year Parts and Labour Warranty
- Bosch 10 Year Heat Exchanger Warranty
The Bosch 26e Highflow system is a continuous flow hot water system that only heats the hot water as and when required. It is suitable for 2 to 3 bathroom households and has a 5.53 star energy performance and it is also an efficient alternative to traditional electric and gas hot water storage systems. It has maximum efficiency and you are ensured of continuous hot water supply while saving money and caring for the environment.
For more information about Bosch Highflow Hot Water System 26e Specifications click on the link.

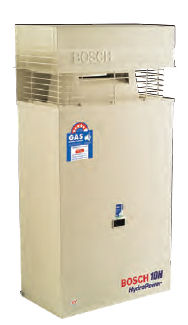

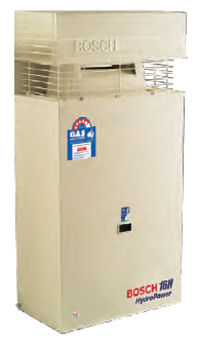

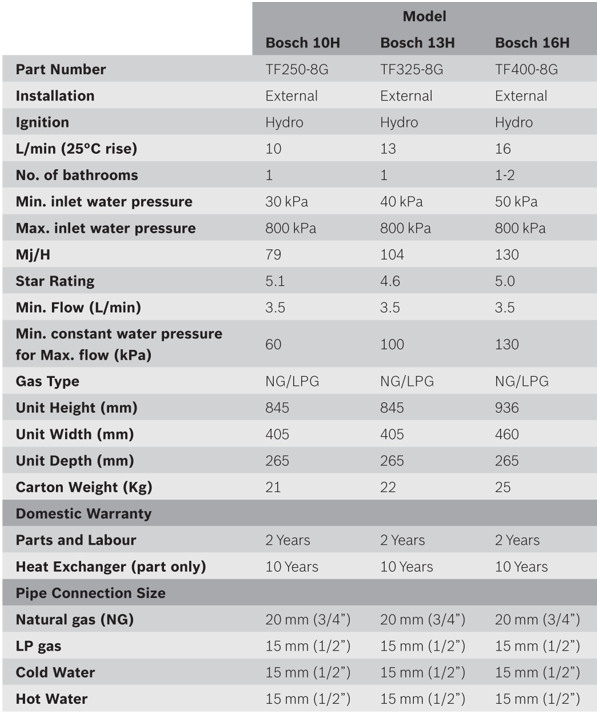

What is Bosch HydroPower?
Bosch HydroPower systems use the energy created by water flow to ignite the burner and begin the heating process. The system only ignites when a hot water tap is opened. Once the hot water tap is closed, the system turns itself off. The principle for this revolutionary ignition system is to create a supremely efficient appliance that is simple and easy to install. External HydroPower models are available in 10, 13 and 16 litre per minute flow rates and are available in Natural or LP gas.
Features and Benefits
- HydroPower Ignition
- Continuous Hot Water
- Environmentally Friendly
- Constant, Reliable Source of Hot Water
- Energy Efficient
- Internal Models Available
- Easy Installation
- 2 Year Parts and Labour Warranty
- 10 Year Heat Exchanger Warranty
An exogel valve is recommended for cool areas that drop to 0°C for short periods. In areas prone to extended periods of frost and sub-zero temperatures, only internal compact models, external Highflow models and 32 series models are suitable. The External HydroPower range conveniently provides continuous hot water without a power point or a standing pilot light. The principle for this revolutionary ignition system is to create a supremely efficient appliance that is simple and easy to install.
The Bosch internal compact hot water range uses the energy created by the water flow to ignite the burner. This begins the heating process in the Bosch internal compact hot water heater. The system only ignites when a hot water tap is opened. Once the hot water tap is closed, the internal compact hot water heater turns itself off. The principle for this revolutionary Bosch ignition system is to create an efficient appliance that is easy to install. Bosch internal compact hot water range lets you enjoy the convenience of a revolutionary hot water system that needs no power to operate it.
Available in 10, 13 and 16 litre per minute flow rates, the Bosch Compact range is a available in Natural Gas or LP Gas. If you have limited space the Bosch internal compact water heater can be fitted either as an external or internal installation. The Bosch Internal Compact range of water heaters are created specifically to fit in places where storage units will not. These units will also provide a constant, reliable source of hot water at the turn of a tap, without the need for a powerpoint.
Internal installation does require flueing. Flue Kits to suit the Bosch Internal Compact appliances are:
100mm to suit Internal Ci10
125mm to suit Internal Ci13 & Ci16
Bosch Hot Water Systems can be repaired, serviced and installed by Adelaide Hot Water.

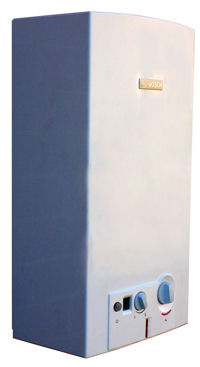

- Ci10 offers Automatic Ignition
- Ci10 can also be an Internal Installation (flueing required)
- Perfect for frost prone areas
- No standing pilot light, no matches or mains electricity required
- Heat water only when you need it
- Digital temperature display
- Compact Design – perfect for homes where space is an issue
- Ci10 has a 10 year heat exchanger warranty
- Ci10 has a 2 year parts and labour
- Improved safety features
- Ci10 has a Flexible Water Connections
- Higher maximum water pressure (1000 kPa)
- Lower flow rate (2.5 Litres per minute) – which allows water to be heated when only little water is being consumed
- Environmentally friendly as it is constructed from 100% recycled materials
- User friendly controls
Input – 79 Mj/Hr
Flow rate @ 25°C rise – 10 L/min
Min. constant water pressure for max. flow (kPa) – 50 kPA
Star rating – 5.3
Gas type – Natural or LP
Dimensions:
Height – 580 mm
Width – 310 mm
Depth – 220 mm
Dry Weight – 10.2 KG
For more information about Bosch Internal Compact – Ci10 Hot Water Systems Specifications click on the link.
- Automatic Ignition- ignition is created automatically when the tap is turned on (the electricity for the ignition spark is sourced from a hydrodynamic generator)
- Internal Installation (flueing required)
- Perfect for frost prone areas
- No standing pilot light, no matches or mains electricity required
- Heat water only when you need it
- Digital temperature display
- Compact Design – perfect for homes where space is an issue
- 10 year heat exchanger warranty (part only) and 2 year parts and labour
- Improved safety features
- Flexible water connections for easy installation
- Higher maximum water pressure (1000 kPa)
- Lower flow rate (2.5 Litres per minute) – which allows water to be heated when only little water is being consumed
- Environmentally friendly as it is constructed from 100% recycled materials
- User friendly controls
Input – 100 NG/ 97 LP Mj/Hr
Flow rate @ 25°C rise – 13 L/min
Min. constant water pressure for max. flow (kPa) – 50 kPA
Star rating – 4.5
Gas type – Natural or LP
Dimensions:
Height – 655 mm
Width – 350 mm
Depth – 220 mm
Dry Weight – 11.8 KG
For more information about Bosch Internal Compact – Ci13 Hot Water Systems Specifications click on the link.
- Ci16 features Automatic Ignition
- Ci16 features Internal Installation (flueing required)
- Ci16 is perfect for frost prone areas
- Ci16 features no standing pilot light
- Heats hot water only when you need it
- Ci16 features a digital temperature display
- Ci16 features a Compact Design
- 10 year heat exchanger warranty
- 2 year parts and labour
- Ci16 features improved safety features
- Ci16 features flexible water connections
- Ci16 features higher maximum water pressure (1000 kPa)
- Ci16 features lower flow rate (2.5 Litres per minute)
- Ci16 is constructed from 100% recycled materials
- Ci16 features a user friendly control
Input – 127 Mj/Hr
Flow rate @ 25°C rise – 16 L/min
Min. constant water pressure for max. flow (kPa) – 50 kPA
Star rating – 4.6
Gas type – Natural or LP
Dimensions:
Height – 655 mm
Width – 425 mm
Depth – 220 mm
Dry Weight – 12.5 KG
For more information about Bosch Internal Compact – Ci16 Hot Water Systems Specifications click on the link.
Pilot models offer the perfect solution for the budget conscious consumer without compromising product quality or performance. A standing pilot light is maintained throughout the life of the appliance. Available as an external installation, the Bosch Pilot range provides constant hot water at the turn of a tap, without the need for a power point. Only heating water when required, the range is extremely economical to run. The Pilot range is safe and easy to operate – no matches are required to light the appliance. Bosch Pilot Ignition systems are available in 10, 13 and 16 litre per minute flow rates (10 litre model available in Natural gas (NG) or LP gas. 13 & 16 litre models available in NG only).
Colder Climates
An exogel valve (see Bosch Accessories page) is recommended for areas that drop to 0ºC for short periods. In areas prone to extended periods of frost and sub-zero temperatures, only Internal HydroPower models, external Highflow models and 32 series models are suitable. As an option for the cost sensitive customer, Bosch Pilot models offer a low budget alternative, without compromising product quality or performance. A standing pilot light is maintained throughout the life of the appliance. The Bosch Pilot range features constant hot water at the turn of a tap, economical running costs and are easy to install
The Bosch Condensing Range consists of both a Domestic (26eco+) and Commercial (32C) appliance.
Bosch 26eco+ Hot Water Systems
- 6.9 Star Energy Rating
- 26 litres per minute
- Condensing technology
- Secondary heat exchanger for maximum efficiency
- Install up to four optional temperature controllers
- Available in Natural or LP Gas
- Ideal for 2 – 3 bathroom homes
- Factory set at 55oC
- Neutraliser for non-acidic condensate: When heat from the exhaust gas is collected within the secondary heat exchanger, condensation occurs from moisture in this exhaust gas, and the resulting water is discharged from the drain pipe.
The Bosch 26eco+ has an in-built neutraliser that is specifically designed to transform this acidic condensate into a neutral and environmentally friendly emission.
For more information about Bosch 26eco+ Hot Water Systems Specifications click on the link.
Bosch 32C Hot Water Systems
Bosch have developed the Commercial Condensing (32C) to complement their already comprehensive range of high efficient Commercial hot water units. The new Bosch 32C will sit at the top of the range as the most efficient Commercial gas hot water unit on the market today.
With the ever increasing push for greater efficiency in the Commercial hot water markets to meet Environmentally Sustainable Development (ESD) standards and return on investment, the new Bosch 32C will be sure to exceed all expectations.
The new Bosch 32C gas hot water unit is the next generation in obtaining hot water by condensing technology. This product innovation utilises a dual heat exchanger created from a fusion of stainless steel and copper heat exchangers. The 100% stainless steel component captures the residual heat from the exhaust gas to preheat the incoming water prior to the water entering the main copper heat exchanger – making the appliance over 94% efficient!
Applications
The Bosch 32C appliance is suited to both Commercial and Domestic settings – anywhere that there is a demand for large volumes of hot water.
The 32C can be configured in either external or internal (flueing required) installations and is available in Natural Gas or LPG. For internal installations flueing is required, which is exclusively supplied by Bosch: high quality flue components made from a combination of Poly Propylene and aluminium .The specific characteristics of the 32C flueing system include easy push fit joints, light weight components, vertical or horizontal flue terminals and it is cost effective.
Installed internally it requires Poly Propane/Aluminium flueing, which is supplied exclusively by Bosch through Plumbing Supply Stores.
The Bosch 32C is fitted with the tried and tested Bosch self diagnostic system and is compatible with the Bosch system controller or quick connect cable for multiple unit installations (manifolded systems). Another key feature of the Bosch 32C is its ability to operate with solar hot water/warm water return systems making it compatible with high efficient solar systems.
In order to provide continuity in the Commercial range, the new 32C utilises the same controllers as the existing continuous flow Commercial 32 ltr series (KM3211WHNG/LP).
To help ensure the longevity of its performance all of the heater’s are fitted with commercial grade components and a resin coated PC board to increase durability and protection from elements.
Did you know? A by-product of the condensing process is corrosive flue condensate. To combat this, the Bosch 32C contains an in-built neutraliser which transforms the acidic condensate into a neutral and environmentally friendly emission.
Key Features:
- 6 star energy efficiency rating – the most efficient Commercial appliance on the market with 94% energy efficiency
32 litres per minute - Condensing technology
- Commercial grade heat exchanger – 100% stainless steel corrosion resistant heat exchanger fused with a commercial grade copper heat exchanger for maximum efficiency
- Ability to be manifolded – Quick connection cable and system controller allow a fully electronic rotation
- Is available in 37°C – 85°C temperature range (without temperature controllers), 37°C – 80°C temperature range (with temperature controllers) or 50°C locked
- Compatible with warm water return/solar
- Internal and External installation – Poly Propylene (PP) and aluminium flueing components and a stainless steel external vent cap make both installations corrosion resistant and easy to install
- Commercial grade components/Resin coated PC board – increases durability and protection from elements
- In-built neutraliser for the safe release of condensate (ph neutral condensate)
- Easy temperature adjustment – controllers/built in bridges to adjust max temp. range
For more information about Bosch 32C Hot Water Systems Specifications click on the link.
Bosch Commercial Hot Water Systems
Whether you are building a new home or replacing an existing hot water system as part of a renovation, a Bosch Professional will provide uncompromised quality whilst being compact, space-saving and easy to install.
The Bosch Professional has a 5.56 star energy efficiency rating and in addition to being energy efficient the Bosch Professional is also cost effective for you. Being 50ºC limited there is no need for additional tempering valves for the household.
Key Benefits:
- 50ºC limited
- Delivery capacity of 21 litres/min at a 25ºC rise
- Premium Warranties – 3 years parts and labour and 10 years heat exchanger (part only)
- Easy installation
- Compact design
- Energy efficient and Reduced costs (compliance with Australian Standard 3489-2003)
- Install up to four temperature controllers
To learn more about these exciting new products, please download the Bosch Professional Hot Water Systems Brochure by clicking on the link.
Bosch are proud to present the latest in commercial water heating, the Bosch 32 Series. The 32 litre commercial units are specifically designed for Australian and New Zealand commercial use. Options include one unit through to a fully manifold system. The Bosch commercial units have all your applications covered. The 32 series has a coated copper heat exchanger to prevent corrosion and deterioration and the internal copper piping is 25% thicker than residential models to extend the life of the product. In addition, the Quick Connect Cord (KMQC0703339) is available for easy installation of 2 units manifolded for heavier applications.
The Bosch 32 and 32Q will, with a controller attached, reactivate within 1 minute of the power coming back on after a power outage and go back to the settings that it had before the loss of power (great for sporting complexes). Both the 32 and 32Q feature the same physical dimensions. Antifrost comes as a standard option with the 32 series.
Internal / External Applications – Unique to Bosch
The Bosch units can be installed either internally (using the Bosch flue kit), or externally with the additional Bosch accessory, Vent Cap (KMVC100), making the Bosch 32 series the most flexible units on the market.
Temperature Controllers
The 32 series are most effective when coupled with the optional temperature controllers. The controllers offer fingertip water temperature control, accurate to single degrees. The commercial controller gives you the advantage of not having to mix hot water with cold water as this is done automatically inside the unit.
Main Remote Controllers – RCM3211
Time Display
Accurate temperature setting, e.g. 40ºC
Circulation mode (32Q only)
Controller is standard with 32Q model
Sub Controller – RCS3211
Up to 3 temperature controllers can be fitted to the 32 and 32Q, i.e Main Remote Controller and 2 Sub-Controllers
Bosch has also developed a range of Professional Packs, including burner and tank, ready to be shipped to your site for installation. This means easy installation and low set-up costs! The packs come in a range of different sizes from a 250ltr tank + 200mj burner to a 315ltr tank + 250mj burner. (Please see link on right to download information regarding the Bosch Professional Pack range)
Bosch 32 Series gives you flexibility and reliability when there is a demand for large volumes of hot water. The 32 series has all your applications covered and is perfect for large homes (3+ bathrooms). Enjoy instant hot water when you need it!
The unique features of the Bosch 32 include:
- Delivers up to 32 litres of hot water per minute
- Available in
- Internal* and External installations
- 4.8 stars
- Wall hung
- Minimum pressure – 200 kPa
- Minimum flow rate – 3.5ltrs per minute
- Capacity range 3.5 – 32ltrs minute
- Direct ignition
- Temperature settings – 37-48, 50, 55, 60, 65, 70, 75, 80º C, factory set at 60º C
- Safety devices – flame rod, thermal fuse, pressure relief valve, lightning protection device (ZNR), electric leakage prevention device, overheat prevention device, freezing prevention device, fan rotation detector
- 25 degree rise @ 32ltrs per minute
- Compact design
- Easy installation
The Bosch 32Q has all the features of the 32, PLUS…
- When used on a ring main, an internal pump circulates water around your house to give you hot water at your taps when you need it
- Circulation Mode – Main controller has a built in timer for recirculation pump
- Main remote controller – (RCM3211) included as standard with KM32111WHQ (NG/LP)
To learn more about these products, please download the Bosch Commercial: Bosch 32 and 32Q Hot Water Systems Brochure by clicking on the link.
Bosch Solar Hot Water
The Solar Wizard Range consists of two product varieties:
- Electric Boosted Solar Hot Water
- Gas Boosted Solar Hot Water
The Solar Wizard Range offers the following benefits for you:
- Energy efficient – saving you money
- RECs registered products – rebates available*
- State of the art solar controller with frost protection for peace of mind
- Reduces greenhouse gas emissions
- Premium quality materials for durability and reliability
- Comprehensive warranties providing you with peace of mind
*Subject to change without notice in addition to imposed Australian Government eligibility requirements. For further
information, please refer to the Office of the Renewable Energy Regulator (www.orer.gov.au)
To learn more about these exciting new products, please download the Bosch Solar Wizard Hot Water Systems Brochure by clicking on the link.
To learn more about these products, please download the Bosch Solar Hot Water Systems Brochure by clicking on the link.
Bosch Accessories
Bosch offers a range of Hot Water System Accessories, like:
BLB70
Bosch now offers a security bracket* made from 2mm thick galvanised plate steel which attaches to the wall and the hot water system to secure your investment.
Padlock is not included.
*Available for all products in the Highflow range and the 26eco+ only.
Dimensions (mm)
Height: 60
Width: 175
Depth: 35
For more information about Bosch Security Bracket and Bosch Hot Water Systems Accessories please see the Bosch Domestic Brochure by clicking on the link.

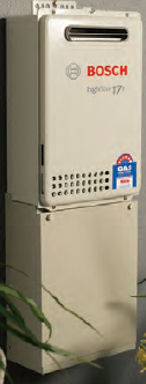

A pipe cover* can be easily attached to your Highflow hot water system. It conceals the pipes leading to the appliance, giving a neat and smooth finish to the installation. This also allows the power point to be sheltered beneath the cover.
The Bosch pipe cover is only available for the Bosch Highflow Range including the 17e, 21e & 26e.
*Available for non-recessed Highflow models only.
Dimensions (mm)
Height – 410
Width – 342
For more information about Bosch Pipe Cover and Hot Water Systems Accessories please see the Bosch Domestic Brochure by clicking on the link.
When installing an external Pilot or Hydropower system, an exogel valve* can be installed to help minimise the possibility of damage to the appliance caused by freezing water expanding in your system.
*Only available for the external Pilot and Hydropower appliances installed in areas where temperatures fall to 0ºC for short periods. (Exogel valve purcahsed separately to unit).
For more information about Bosch Exogel Valve and Hot Water Systems Accessories please see the Bosch Domestic Brochure by clicking on the link.
For Bosch Pilot and HydroPower systems that are installed on combustible surfaces, a heat shield protects your home from hot flue gases.
For more information about Bosch Heat Shield and Hot Water Systems Accessories please see the Bosch Domestic Brochure by clicking on the link.
26eco+ Recess Box
When installing a Bosch 26eco+ appliance, the Bosch lockable 26eco+ recess box allows the unit to be semi-recessed, saving space and securing your investment.
The lockable recess box can also be painted to suit the appearance of your home.
Brick opening dimensions* (mm)
RBBC26L
Height – 930
Width – 345
Depth – 160
*Minimum dimensions
For more information about Bosch Recess Boxes and Hot Water Systems Accessories please see the Bosch Domestic Brochure by clicking on the link.
Fully Enclosed Recess Boxes
FERB70
Bosch now offers a fully enclosed recess box to completely conceal your Bosch Highflow unit.
The fully enclosed recess box can also be painted to suit the appearance of your home.
Brick opening dimensions* (mm)
Height: 930
Width: 365
Depth: 175
*Minimum dimensions
For more information about Bosch Recess Boxes and Hot Water Systems Accessories please see the Bosch Domestic Brochure by clicking on the link.
Lockable Recess Box
RBHF50L (17e & 21e) RBHF26L (26e)
Ideal for new homes, Bosch lockable recess boxes allow Highflow systems to be completely recessed, saving space and securing your investment.
The lockable recess box can also be painted to suit the appearance of your home.
Brick opening dimensions* (mm)
RBHF50L & RBHF26L
Height: 930
Width: 345
Depth: 145
*Minimum dimensions
For more information about Bosch Recess Boxes and Hot Water Systems Accessories please see the Bosch Domestic Brochure by clicking on the link.
Premium Controllers
Bosch Highflow models now enable you to install up to 4 optional temperature controllers. This allows precise control of water temperature in the kitchen, bathroom, en suite and laundry.
Why install temperature controllers?
The installation of Bosch temperature controllers has many practical features.
- Easy to use – No need to mix hot and cold water. Simply select the temperature you desire and turn on the hot water tap.
- Peace of mind – Precise temperature control means that you can select a safe temperature that your children can bathe in. This will minimise the chance of scalding and will allow you to shower or bathe at your ideal temperature.
- Environmentally friendly – With water restrictions currently in place in most regions, the Water Saver function gives you peace of mind by limiting the duration of showers.
Consistent delivery – Elimates the hot and cold fluctuations caused when someone else in the house uses another tap or flushes the toilet.
Bosch Standard and Premium controllers cannot be used in combination. E.g a Premium controller cannot be used with a Standard bathroom controller. Sub controllers can be used in combination with either the Premium or Standard range of Bosch controllers.
Key features of the Bosch Premium controllers (YPRM67XB & YPRS67XB) include:
- Main controller can be set up to the maximum temperature of the unit
- Bathroom controller maximum temperature 50ºCVolume setting – user can specify the output of water in litres
- Assistance call button – allows the user to signal another household member via an audible alarm
- Water Saver function – an audible alarm will sound when the predefined volume is reached (unique to the Premium Controller range)
- Convenient time display (unique to the Premium controller range)
- Bosch Highflow controllers come with a comprehensive 3 year parts and labour warranty
For more information about Bosch System Controllers and Hot Water Systems Accessories please see the Bosch Domestic Brochure by clicking on the link.
Standard Controllers
Bosch Highflow models now enable you to install up to 4 optional temperature controllers. This allows precise control of water temperature in the kitchen, bathroom, en suite and laundry. Why install temperature controllers? The installation of Bosch temperature controllers has many practical features.
- Easy to use – No need to mix hot and cold water. Simply select the temperature you desire and turn on the hot water tap.
- Peace of mind – Precise temperature control means that you can select a safe temperature that your children can bathe in. This will minimise the chance of scalding and will allow you to shower or bathe at your ideal temperature.
- Environmentally friendly – With water restrictions currently in place in most regions, the Water Saver function gives you peace of mind by limiting the duration of showers.
- Consistent delivery – Elimates the hot and cold fluctuations caused when someone else in the house uses another tap or flushes the toilet.
Bosch Standard and Premium controllers cannot be used in combination. E.g a Premium controller cannot be used with a Standard bathroom controller. Sub controllers can be used in combination with either the Premium or Standard range of Bosch controllers.
Key features of the Bosch Standard controllers (YPRM66XB & YPRS66XB) include:
- Main controller can be set up to the maximum temperature of the unit
- Bathroom controller maximum temperature 50ºC
- Volume setting – user can specify the output of water in litres
- Assistance call button – allows the user to signal another household member via an audible alarm
- Bosch Highflow controllers come with a comprehensive 3 year parts and labour warranty
For more information about Bosch System Controllers and Hot Water Systems Accessories please see theBosch Domestic Brochure by clicking on the link.
Adelaide Areas Covered
Adelaide Hot Water install Bosch hot water systems in and around the Adelaide area. Looking for a Bosch plumber in Adelaide? Need to fix your Bosch hot water system? Adelaide Hot Water are hot water plumbers offering Bosch plumbing services in South Adelaide, North Adelaide, Central Adelaide, West Adelaide and East Adelaide. Adelaide Hot Water also provide new Bosch hot water systems in Adelaide suburbs, Adelaide metro regions, Adelaide hills, and the Adelaide local country area.
